Test loads: from 5 to 3000 kgf (From 49,03 to 29421 N)) HBWT Brinell ISO 6506 / ASTM E-10 / ASTM E-103: HB 1/10 - HB 1/30 - HB 2.5/15.625 - HB 2.5/31.25 - HB 2.5/62.5 - HB 2.5/187.5 - HB 5/25 - HB 5/62,5 - HB 5/125 - HB 5/250 - HB 5/750 - HB 10/100 - HB 10/250 - HB 10/500 - HB 10/1000 - HB 10/1500 - HB 10/3000
|

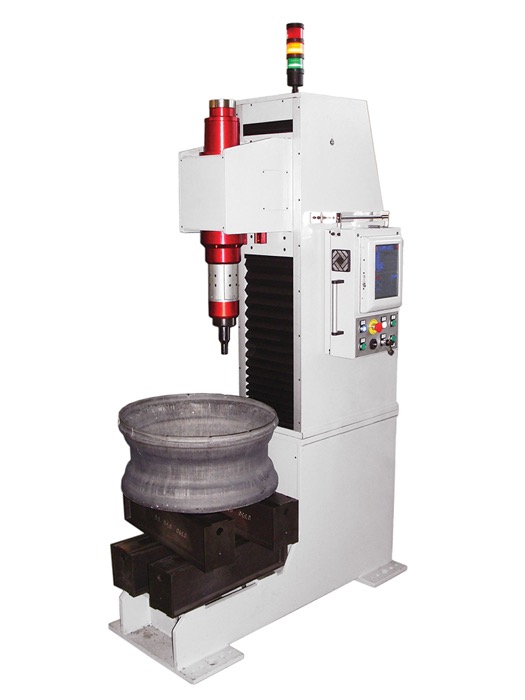

| MRS-JET 3000 | |
|
Standards
|
EN-ISO 6506 / ASTM E18 / ASTM E103
|
|
Vertical head stroke
|
Programmable distance with automatic contact
|
|
Indenter and clamping-hood stroke
|
300 mm
|
|
X-Y table
|
400 x 400 mm
|
|
Depth capacity
|
240 mm
|
|
Force range
|
Brinell: 49.03 - 61.29 - 98.07 - 153.2 - 245.2 - 294.2 - 306.5 - 612.9 - 1226 - 1839 - 2452 - 4903 - 7355 - 9807 - 29421 N |
|
Feasible tests
|
Brinell HBWT
|
|
Accuracy
|
Better than 0.5 %
|
